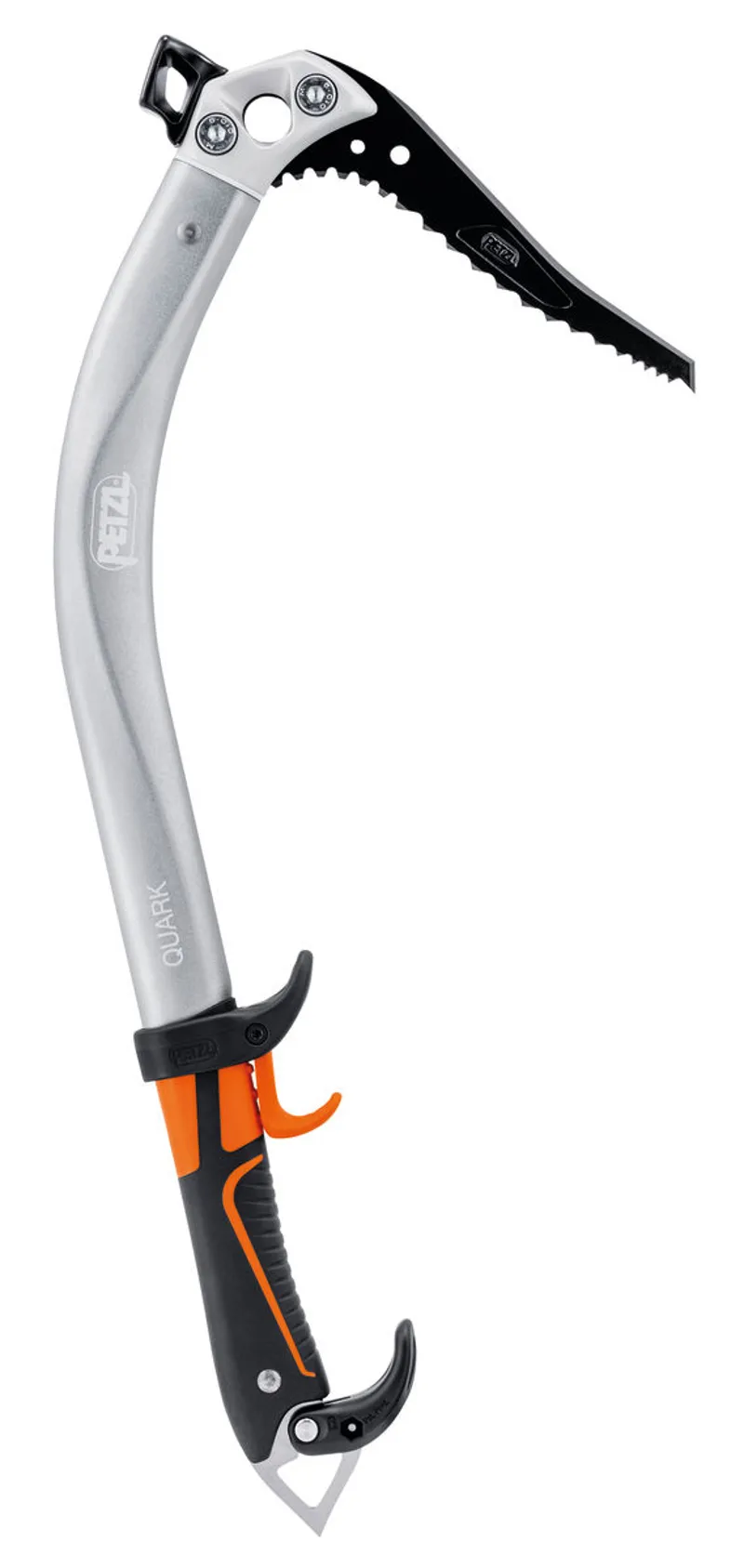

The Petzl QUARK Technical Mountaineering Ice Axe – Hammer Version is a versatile and dependable tool designed for technical winter climbing, steep ice and demanding mixed mountain routes. Combining excellent swing performance with the practicality of an integrated hammer, the QUARK is particularly well suited to Scottish winter climbing, alpine north faces and technical routes where placing or adjusting pitons may be necessary.
Equipped with Petzl's ICE pick, the QUARK provides secure, efficient placements across a variety of ice conditions. The steel pick tapers to 3.3mm at the tip for effective penetration, while the carefully balanced head delivers a controlled and accurate swing. The supplied MARTEAU hammer provides additional versatility for traditional winter mountaineering and mixed climbing.
The hydroformed aluminium shaft features a curved upper section to protect the hands during steep climbing, while remaining sufficiently straight for use in a traditional walking position. An overmoulded bi-material grip provides excellent handling and insulation from the cold. The adjustable TRIGREST QUARK and folding GRIPREST QUARK handrests offer secure gripping positions for technical climbing, with the lower handrest folding away when planting the axe in snow.
Petzl's modular ALPEN ADAPT system allows the pick and hammer to be interchanged with alternative components, adapting the axe to different climbing objectives.
Combining technical ice climbing performance with traditional mountaineering versatility, the Petzl QUARK Hammer is an excellent choice for demanding winter routes where precision, adaptability and the ability to place pitons are important.
Features
Versatile technical ice axe designed for mountaineering, steep ice and mixed climbing

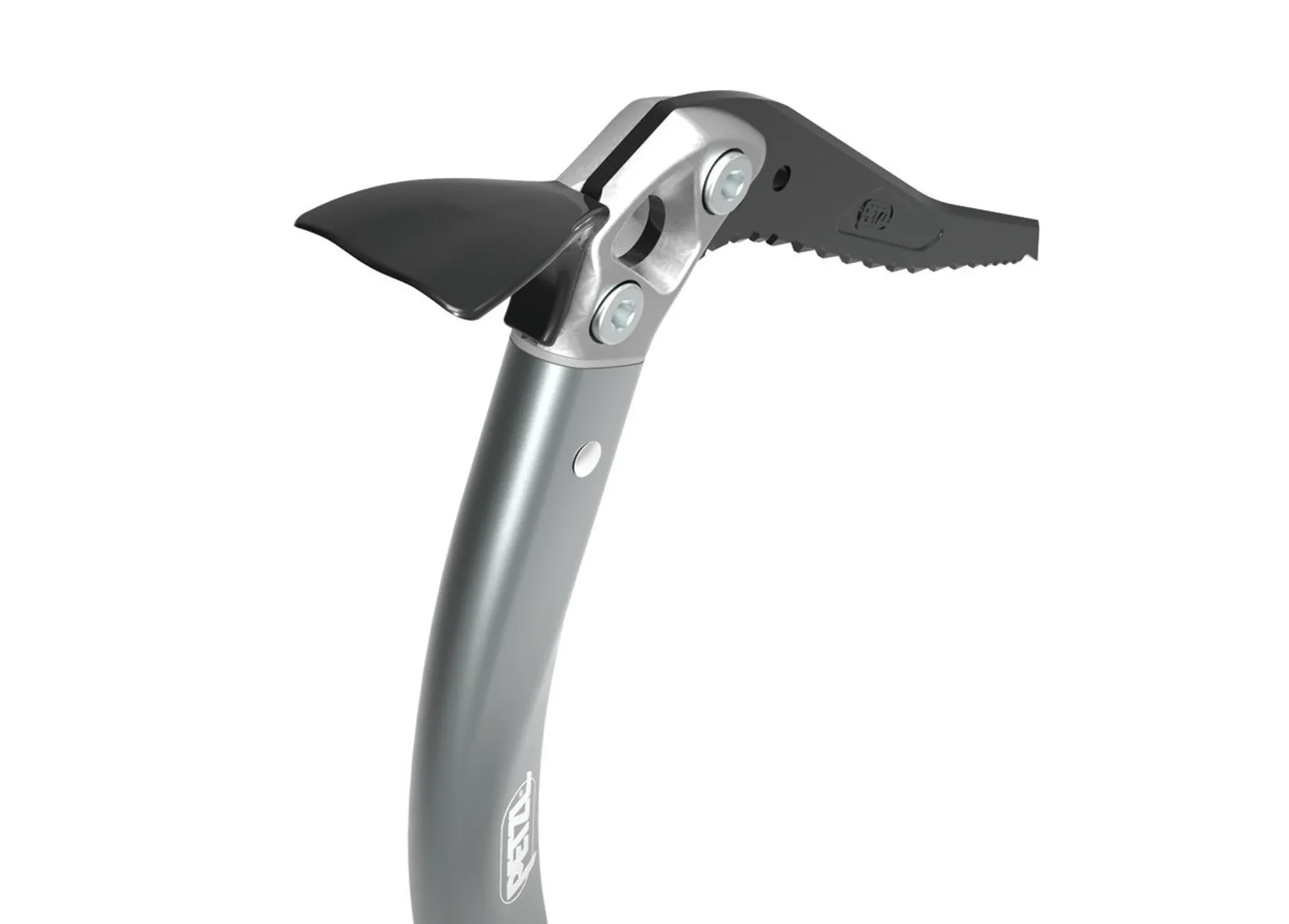

Supplied MARTEAU hammer allows pitons to be placed or adjusted during traditional winter climbing

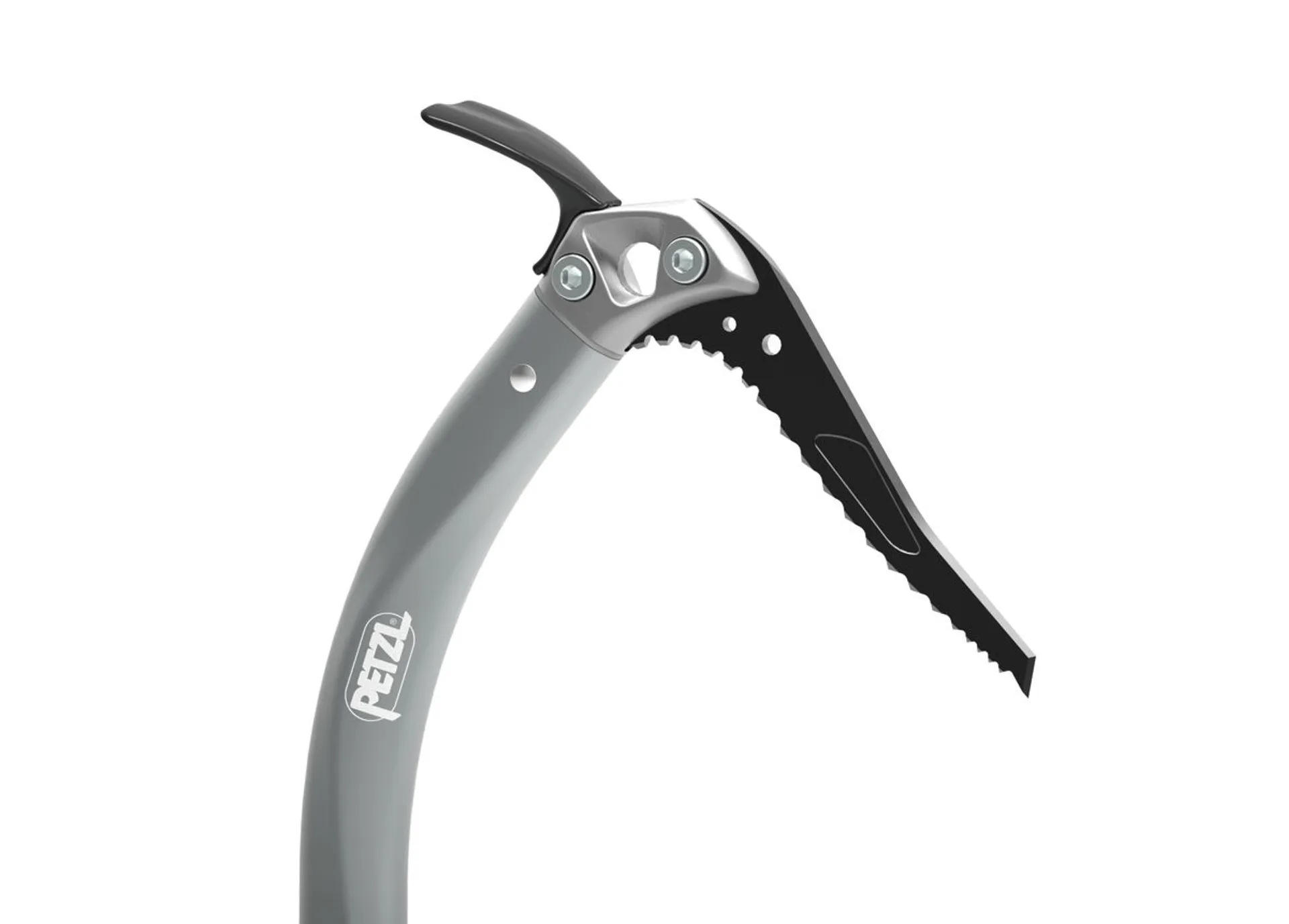

ICE steel pick provides reliable penetration across snow, ice and mixed terrain
Tapered 3.3mm pick tip improves penetration and placement accuracy
Balanced head delivers an efficient, controlled swing on steep ice
Hydroformed aluminium shaft provides secure handling when gripping the axe higher up
Curved upper shaft protects the hands during technical ice climbing
Shaft remains sufficiently straight for traditional piolet-canne use on snow slopes
Overmoulded bi-material handle provides excellent grip and insulation from the cold

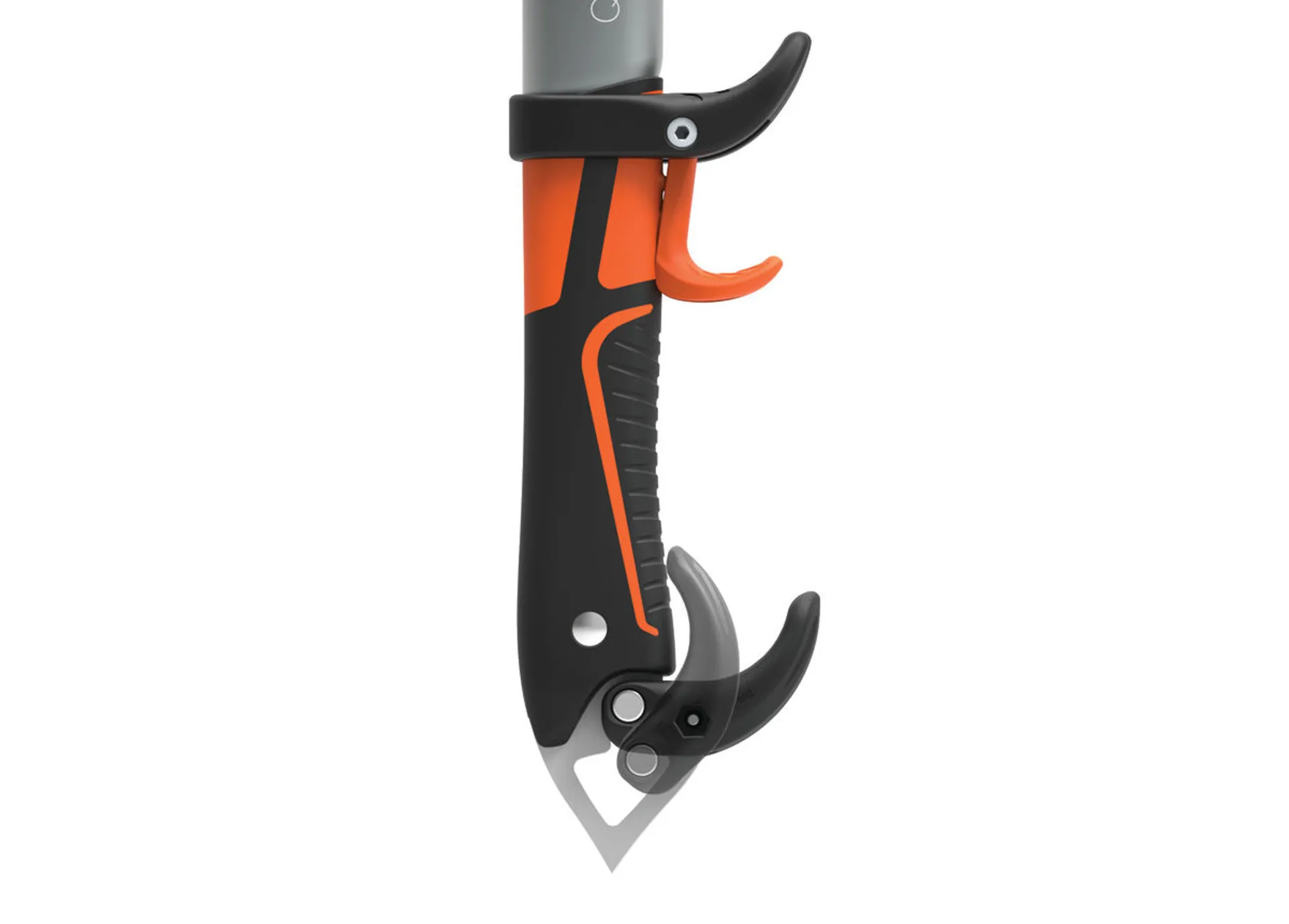

Adjustable TRIGREST QUARK handrest offers improved support on demanding climbing sections
Folding GRIPREST QUARK handrest improves lower-hand security and comfort
GRIPREST folds away to allow easier planting of the axe in snow
Durable steel spike provides secure placement when using the axe in walking position
ALPEN ADAPT modular system allows picks and head accessories to be interchanged
Compatible with ICE, PUR'ICE, DRY and PUR'DRY interchangeable picks
Hammer can be replaced with a compatible Petzl adze
Compatible with optional MASSELOTTES pick weights to adjust swing balance
Connection point accommodates Petzl V-LINK elasticated loss-prevention webbing
Specifications
Brand: Petzl
Model: QUARK
Version: Hammer
Product Type: Technical Mountaineering / Ice Climbing Axe
Pick: Petzl ICE
Pick Classification: Type 2
Shaft Classification: Type 2
Pick Tip Thickness: 3.3mm
Shaft: Hydroformed Aluminium
Shaft Length: 50cm
Materials: Aluminium, Steel, Glass-Fibre-Reinforced Plastic
Head Configuration: ICE Pick with MARTEAU Hammer
Handle: Overmoulded Bi-Material Grip
Upper Handrest: TRIGREST QUARK – Tool-Free Height Adjustment
Lower Handrest: GRIPREST QUARK – Folding Design
Modular System: Petzl ALPEN ADAPT
Compatible Picks: ICE / PUR'ICE / DRY / PUR'DRY
Pick Weights: Compatible with Optional MASSELOTTES
Leash Compatibility: Petzl V-LINK
Certification: CE / UKCA / UIAA
Weight: 550g
Weight Without Accessories: 465g
Manufacturer Reference: U019BA00
EAN: 3342540823624
Guarantee: 3 Years
Country of Manufacture: France
Included Accessories
